Technical Specifications

Atmospheric pressure range
850 to 1100mb (user adjustment to compensate for altitude)

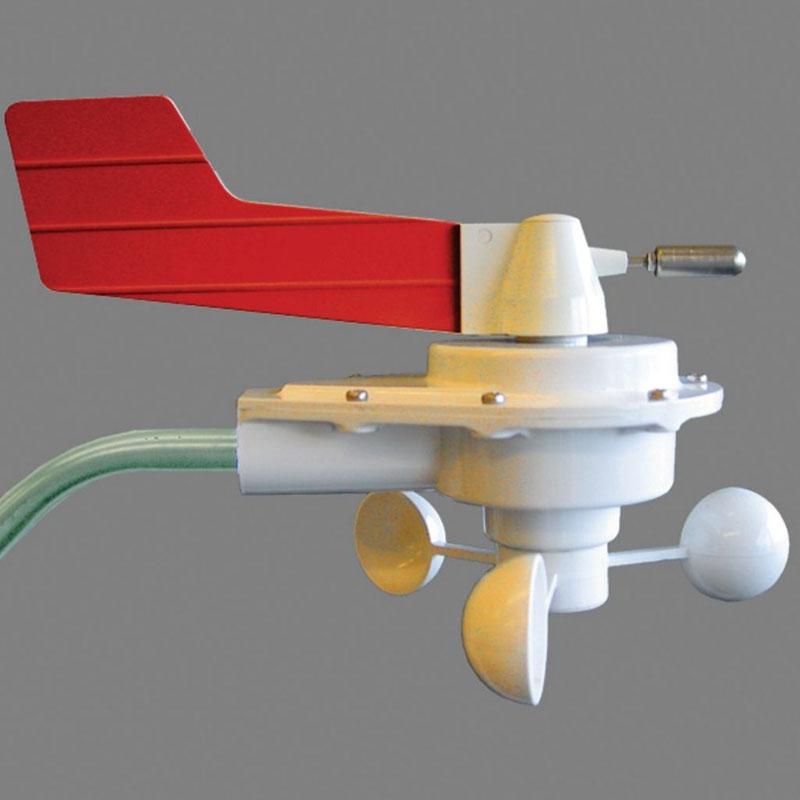

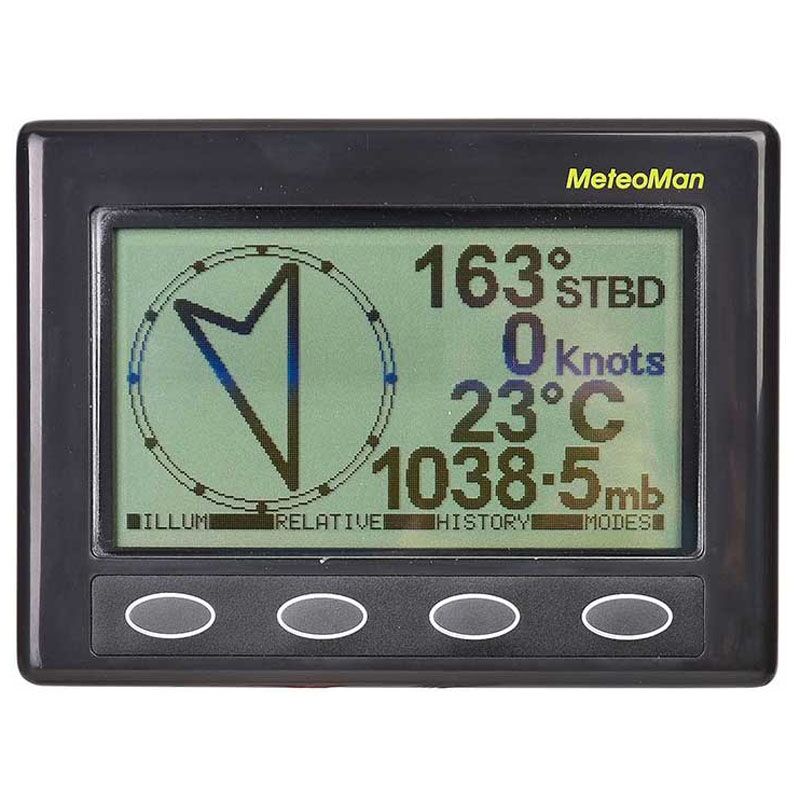

Wind direction (when fitted with NMEA wind sensor)
0 to 360 degrees (in relative mode)
Port 180 degrees to Starboard 180 degrees (in nautical mode)
Displayed in analogue and digital format
Resolution 1 degree

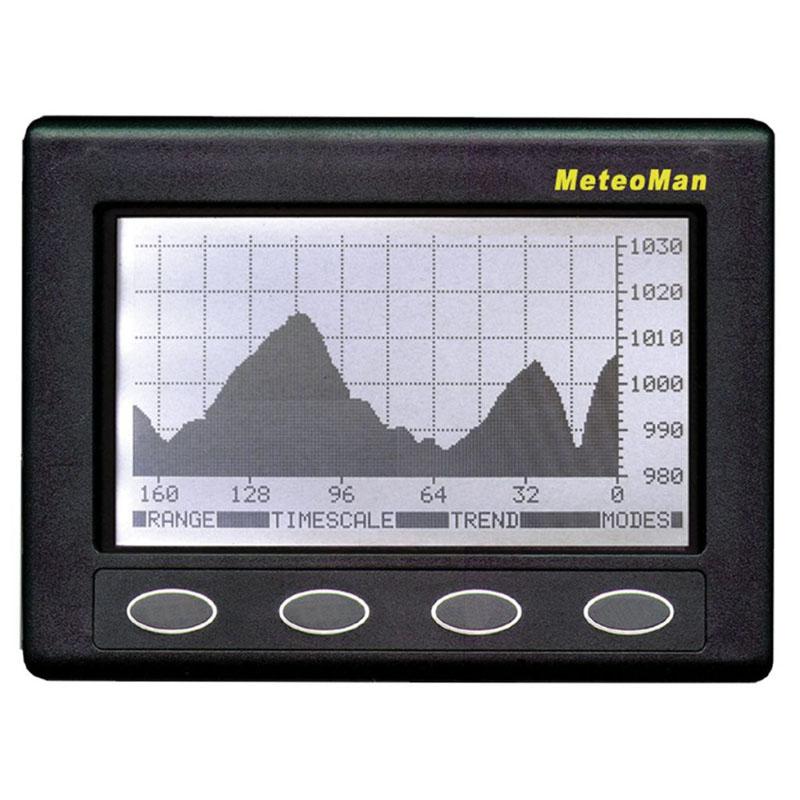

Pressure history
Range 1 950 to 1050mb
Range 2 980 to 1030mb with 0.5mb resolution

Real time clock
12 or 24 hour format
Race countdown timer 10 and 5 minutes
Stop watch with split timing

Recording time
0 to 160 hours
0 to 80 hours
0 to 40 hours

Temperature
Outside temperature (when fitted with NMEA wind sensor)
Cabin temperature
Resolution 1 degree centigrade

Wind speed (when fitted with NMEA wind sensor)
Maximum speed 100 knots
Wind speed history
Range 1 0 to 100 knots
Range 2 0 to 50 knots
Range 3 0 to 25 knots

Supply voltage
9.0 to 15.0 volts – supplied with in line fused power cable (1 Amp)
The voltage is shown on the display with a resolution of 0.1 volts

Supply current
Operating current 100mA (when fitted with NMEA wind sensor)
Operating current 150mA (with backlight illuminated)
Standby current – less than 10mA

Display size: L-150mm, H-112mm, D-42mm,

Recording time
0 to 160 hours
0 to 80 hours
0 to 40 hours
